MFD Series Mobile Fuel Unit

MFD Series Mobile Fuel Unit

  • Characteristics

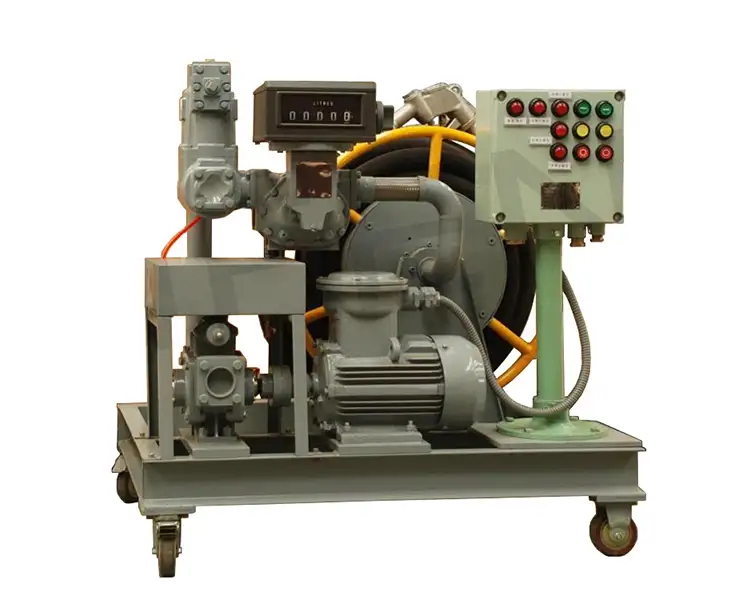

  • MFD series mobile fuel dispenser, containing bulk positive displacement flow-meter, vane pump & coupling drive Ex-proof Motor, Power Control Cabinet, hose & hose reels mechanical register, nozzles etc., applied in boat refuelling in marine, public transportation vehicles, big truck, trains, military vehicles, light aircraft, with advantage of high flow rate, long service life, high accuracy, convenience, easy to operate etc.
    • Construction
    • Technical Specification
    Model MFD-40 mobile fuel unit MFD-50 mobile fuel unit MFD-80 mobile fuel unit
    Flow rate 200L/min 400L/min 700L/min
    Flow Meter M-50-1 flow meter 2" M-50-1 flow meter 2" M-50-1 flow meter 3"
    Pump SUB-40 vane pump YB-50 vane pump YB-80 vane pump
    Ex-proof Motor 1.5Kw,50Hz,380V 2.5Kw,50Hz,380V 7.5Kw,50Hz,380V
    Hose 1.5", 20m 2", 20m 3, 20m
    Hose Reel Manual Reel(Electric motor driven reel for option)
    Preset Function For option
    Electric Register For option
    Packaging 1pc/ Wooden Case
    Net Weight 260kgs 270kgs 305kgs
    Gross Weight 290kgs 300kgs 335kgs
    Size 131×99×125cm 131×99×125cm 140×110×125cm

    • Scope of application

    Automobile; Adhesives; Agriculture; Asphalt; Aviation Fuel; Animal Feed; Beverages; Cosmetics; Chemicals; Concrete; Dairy Products; Liquid Fertilizers; Food; General industry; hydrocarbon processing (refining); liquefied gas; lubricants; shipping; paints; petroleum; petroleum products; pharmaceuticals; printing inks; papermaking; solvents; railways; textiles;
